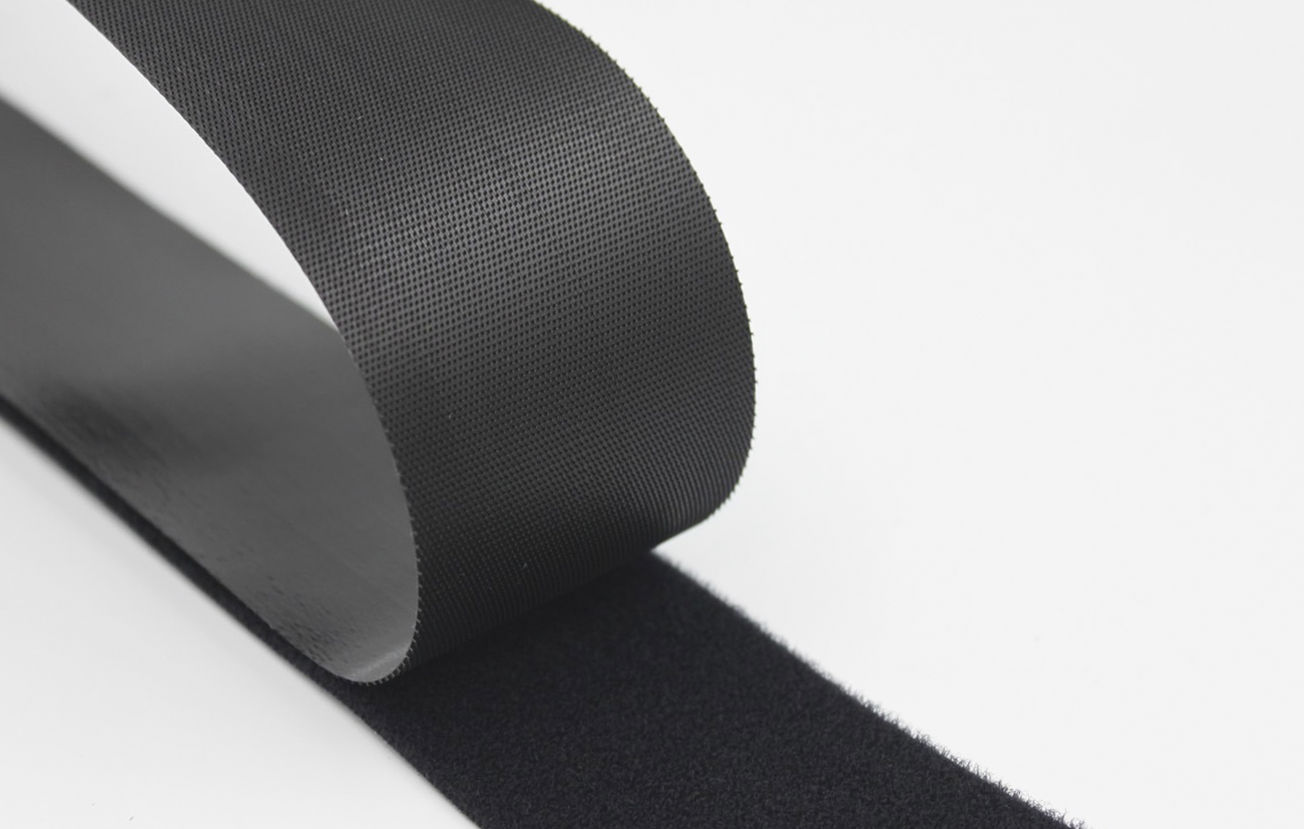

Molded hook (Hook: W01~, W02~, W03~ / Loop: E40000, B2790Y.00, etc.)
By making the hooks plastic, they can be made thinner than woven MAGIC TAPE™.
In addition, it exhibits strong adhesion in the shear direction, but maintains ease of removal.
It is often used in applications requiring both low thickness and high adhesion.
Functions & Features
Thin and Strong
Adhesive Strength as Required
Materials
Combination for Special Functions
Lint Resistance
Bonding with Non-Woven Fabrics
Fit with Components
Monomaterial

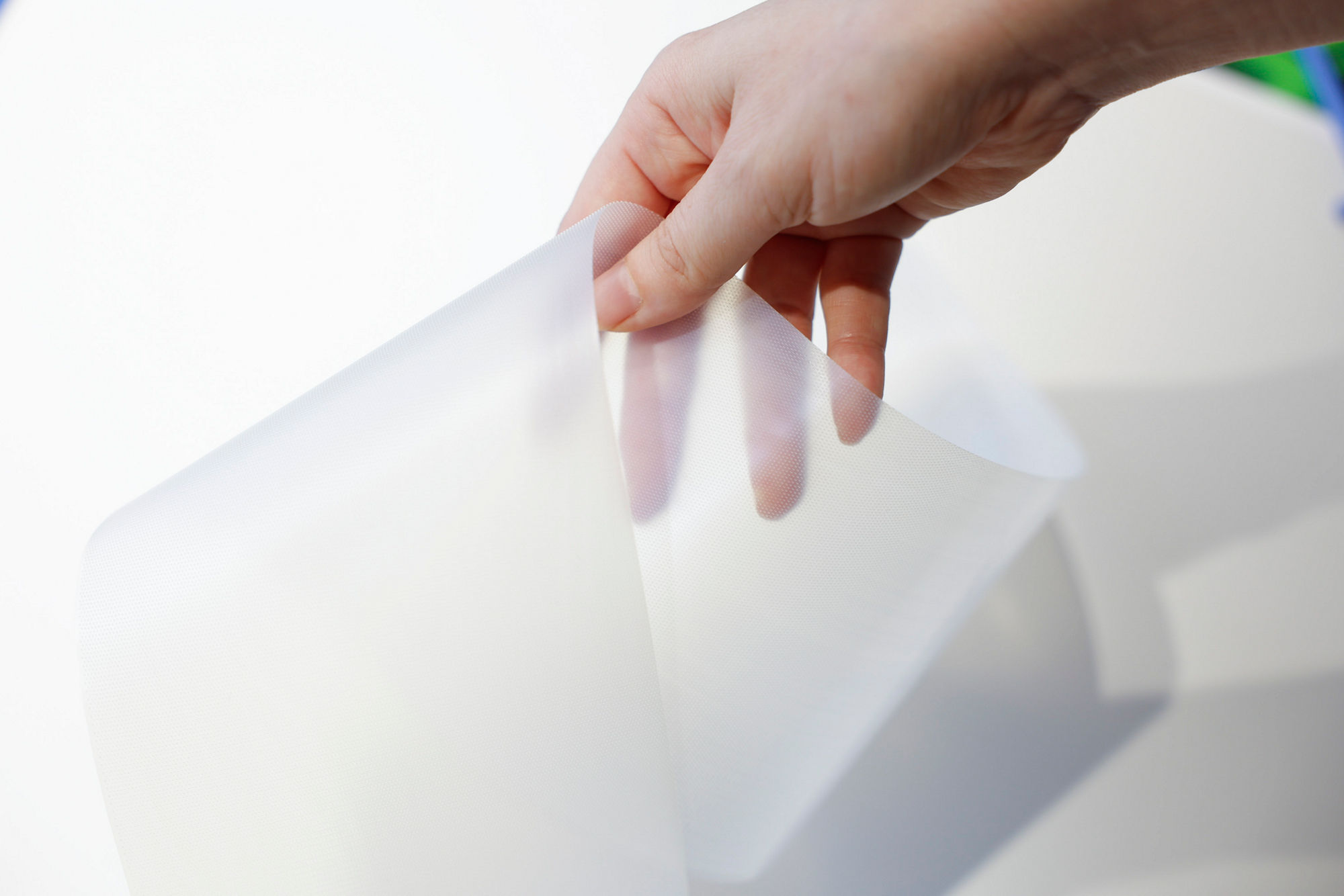

The hooks are made of plastic and are thinner than standard textile hooks, yet have stronger shear force and can be removed more smoothly.
Hooks are available in three sizes, allowing for flexible selection of hook size and loop material according to the required adhesive strength.

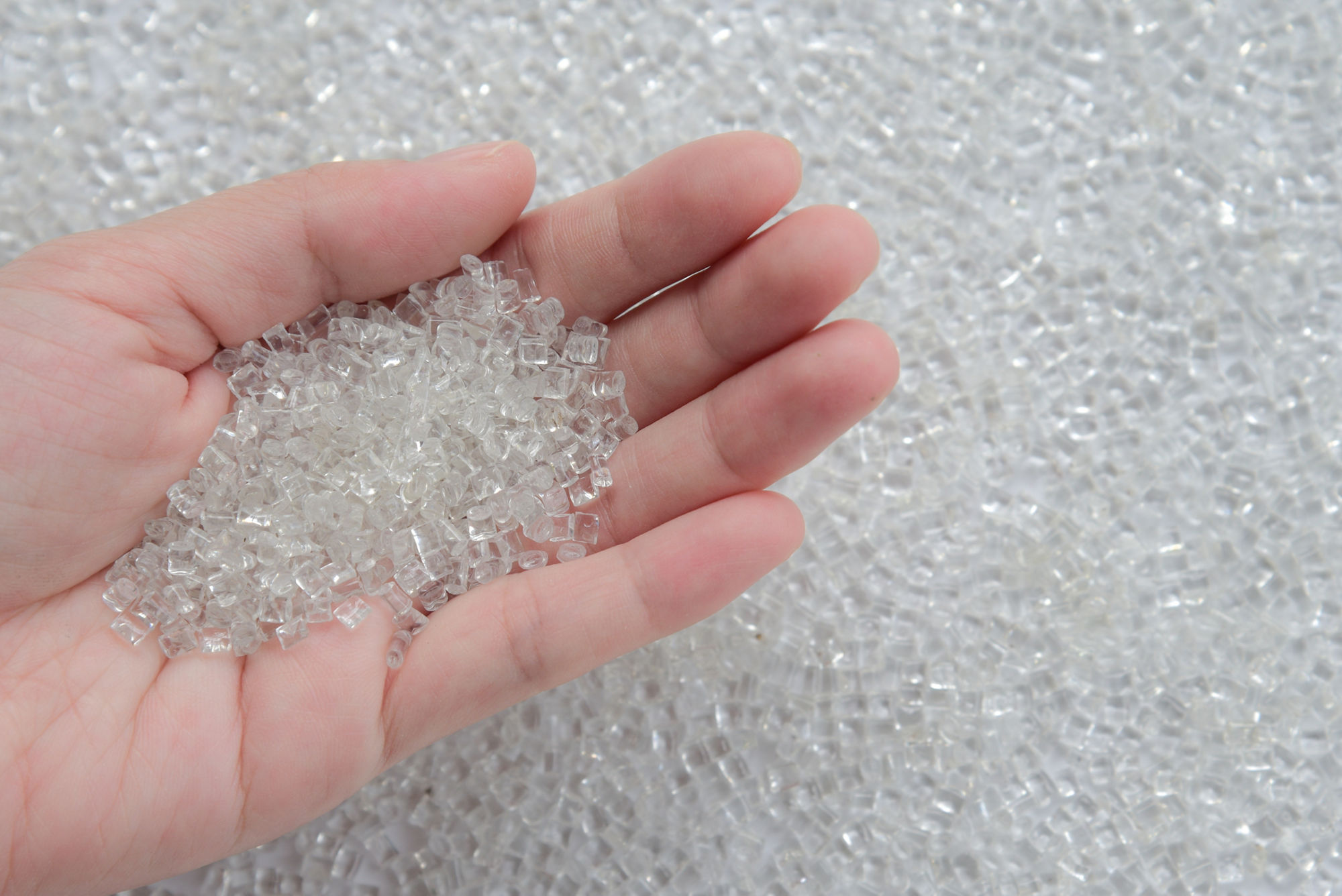

Each resin has different characteristics.
・Polyester: Sewnable, smooth texture
・Nylon: sewable, high engagement strength
・Polypropylene: Strong adhesion
Basic Performance
- Material (hook): polypropylene, nylon, polyester
- Material (loop): polyester, nylon
- Width: up to 120mm
- Thicknesses - hook, loop, and combination: from 0.7 mm, 2.0 mm, and 2.1 mm
(thinnest size)
- Color: black, natural color
Please contact us for more information on each width, thickness, and applicable loop material.
