Molded hook positioning type ( Hook: W03110 / Loop: B9750Y.00 )
The position can be adjusted before the main fixation, enabling smooth installation and contributing to improved work efficiency.
In addition, the combination of specific hook material and loops with higher loop density than the standard type provides strong adhesive strength.
Functions & Features
Position Adjustment Function
Extreme Strength
Small Pushing Pressure
Extensive Adhesion Methods
The combination of specific hook material and loops with higher loop density than the standard type provides strong adhesion.
Depending on the resin of the hook, adhesion can be further enhanced.

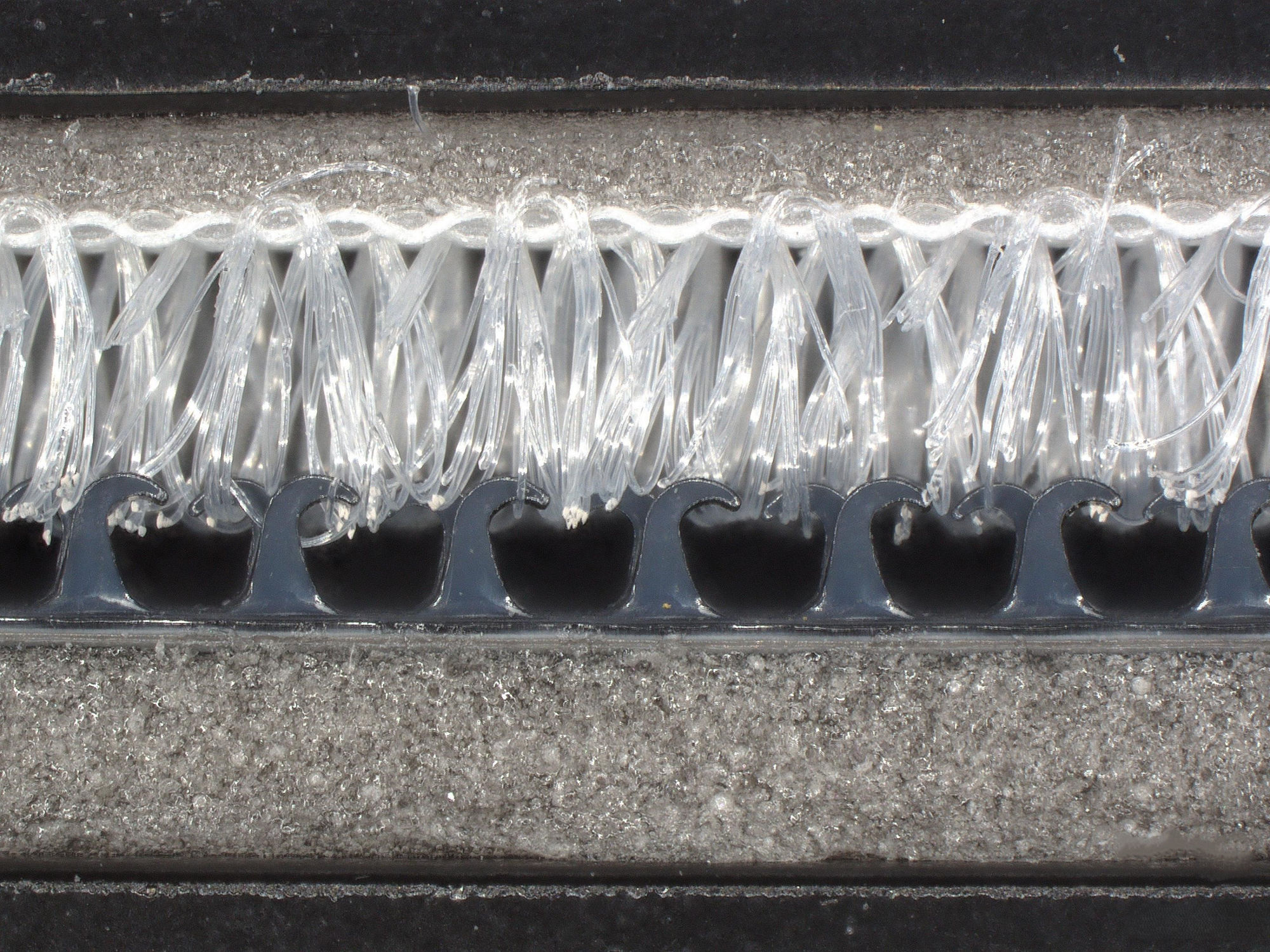

The rounded tips of the hooks and the dense arrangement of the loops allow them to slide without bonding when their surfaces simply touch.
This allows the position to be adjusted before the main fixation, thus enabling installation without loss of time.

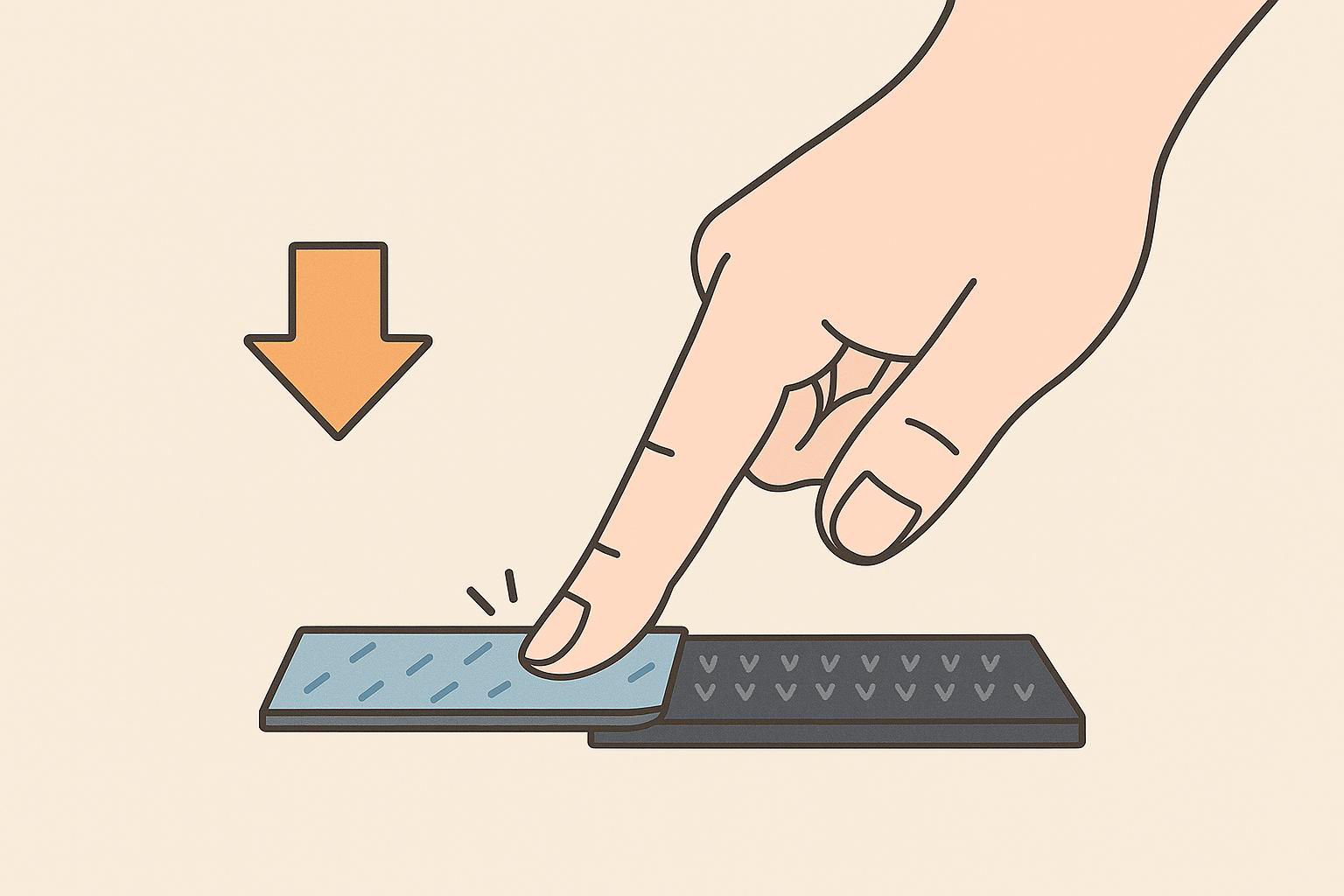

Hooks and loops adhere with a light push.
It reduces fatigue and operator workload even when repetitive installation is performed, such as on a production line.
Basic Performance
- Material (hook): polypropylene
- Material (loop): polyester
- Width: 50mm
- Thicknesses - hook, loop, and combination: 1.3 mm, 2.7 mm, 3.8 mm
- Color: black
*Adhesive strength can be adjusted depending on the brand of hook material. Please contact us for details.
